Grinder Techniglass


Techniglass The Grinder

Techiglass THE Grinder

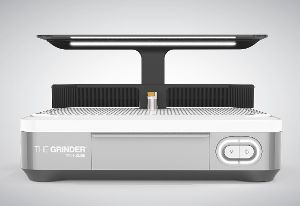

Techniglass' THE Grinder is a state of the art, technological breakthrough for glass grinders.
Now you can grind with style with this innovative machine.

Techiglass THE Grinder

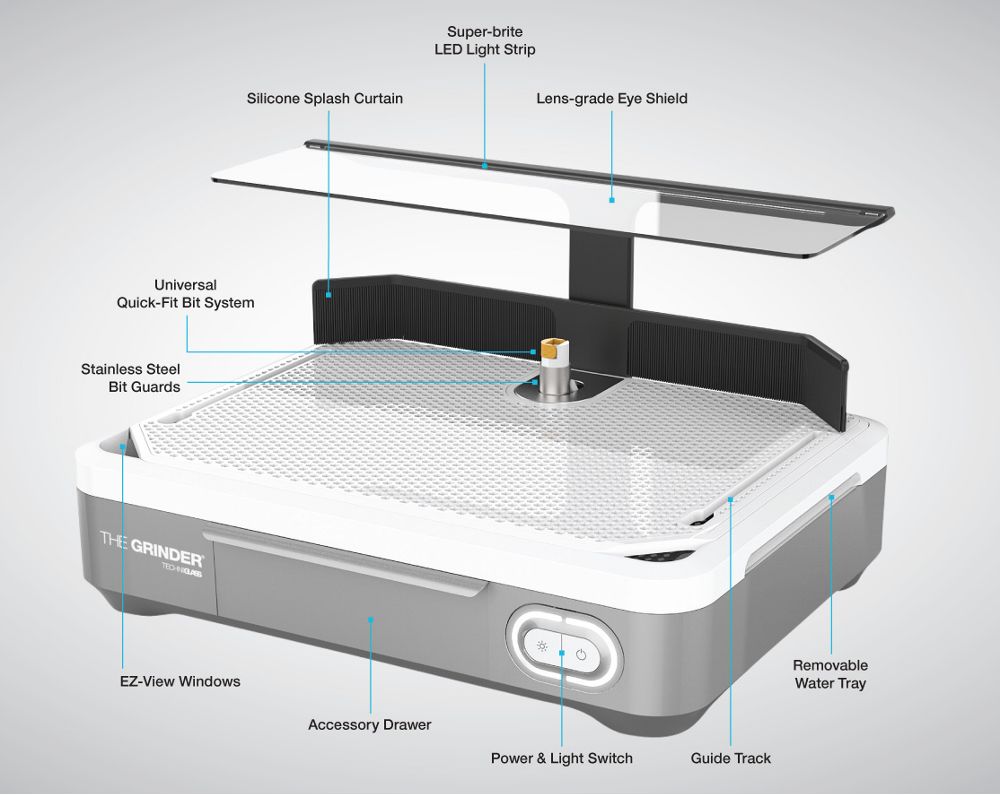

  • Super-brite LED Light Strip
  • Lens-grade Eye Shield
  • Removable Water Tray
  • Guide Track for Tool Attachment
  • Accessory Drawer
  • EZ-View Windows
  • 1" Everwear Stainless Steel Bit Guard
  • 1" Quick-Fit Bit System Included
  • Silicone Splash Curtain
  • Lumishield Mount Cap
  • Aquaflow Brush System Included


Techiglass THE Grinder
Accessory Drawer and Tray Insert - An exclusive, compartmentalized, and built-in drawer is a space saving way to store spare bits, included scraper, Aqua Flow System, replacement brushes, stainless steel bit guards, and other tools!

Techiglass THE Grinder
THE Grinder is equipped with a 5 ft. (1.5 m) durable and removable 3-prong cord which meets international standards and is 110V & 220V compatible.  For international use, all you need to change is the power cord!  Australian plugs are also available.

Techiglass THE Grinder

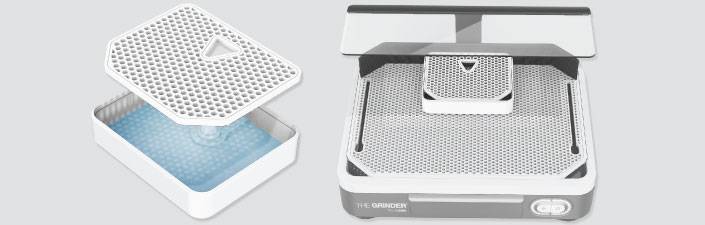

The secondary platform with water reservoir can be effortlessly placed atop the main grid enabling use of 1/4″ and 1/8″ spindle top bits. Equipped with its own reservoir, the secondary platform has water ingeniously delivered to the grinding head for flawless execution.

  • Platform Dimensions: 1.3"H x 6"W x 5"D (33 x 153 x 127 cm)
  • Elevated surface outfitted with EZ-Lift Grid that can be removed for the addition of water or cleaning with specially-designed cutouts
  • Platform is self-sufficient with its own, separate water supply
  • The reservoir water level can be continuously monitored through the EZ-View Windows.



Motor: Brushless DC
Voltage: 110-220 v; Dual voltage for international use
RPM: 4500 RPM
Torque: 57 oz/in (0.4 N/m)
Max Horsepower: 1/6 HP
50-60 HZ
Weight: Grinder and Accessories: 13 lbs/6 kg
Grinding Surface: 12" x 16" (30 x 40 cm)
Threaded, open-tip spindle for 1/4″ and 1/8″ jewelry bit attachments
Low profile

Because of the DC Motor, most foot switches are not compatible with it.  However the motor is so quiet and cool, you don't really need one. It uses 24x less electricity than other grinders!

# 7800   THE Grinder
MSRP:  $ 349.95

# 7800    $ 349.95  $ 324.95
We also have UK, Australian and EU versions in stock.  Just request them in the Special Instructions.

Mini G Grinder Heads

Techiglass THE Grinder

The MiniG is a set of 1/4" and 1/8" grinder heads for THE Grinder and Grinder2. Twists into the top of the shaft for easy installation.

# 7789    $ 30.95  $ 26.49

Everwear Bit Guard

Techiglass 3/4 Everwear bit guard           Techiglass 1 Everwear bit guard

Replacement Stainless Steel Bit guards to put under the bit while grinding.  THE Grinder comes with a 1" bit guard. THE Grinder2 comes with a 3/4" bit guard.

3/4" Bit Guard
# 7787    $ 18.59
1" Bit Guard
# 7788    $ 19.95


THE SET for Grinder 1

Techiglass THE Grinder 2  Techiglass THE Grinder 2

Sophisticated Design with Unsurpassed Accuracy
The SET (Straight Edge Tool) perfectly aligns atop THE GRINDER work surface, enabling glass to easily slide between the grinding bit and the straight edge guide bar.  Precisely grind rectangle and square shaped glass to your desired dimensions. Finish your pieces with confidence and accuracy!

# 7785    $ 32.95

Replacement Aqua Flow Brush

Techiglass THE Grinder

Replacement white aqua flow brush for the main water reservoir of the grinder. (3 pack)
# 7797    $ 11.95

Replacement Aqua Flow Brush for Mini G Basin

Mini G Aqua Flow brush

Replacement orange aqua flow brush for the second story Mini Basin.
This brush only for use in the Mini G Elevated Platform.

# 7792    $ 1.95

Replacement Aqua Flow System
for THE Grinder 1 & 2

Techniglass THE Grinder aqua flow

Replacement Aqua Flow clip and 2 white brushes. The orange brush for the Mini G Elevated Platform fits in this clip too.  If you don't like moving the clip from the grinder to the platform and swapping out brushes, getting a second clip is the way to go.
# 7790    $ 13.75

Replacement Power Cord

Works for THE Grinder and Grinder 2
US, AUS, UK and EU versions available.

# 7801    $ 13.95

Techiniglass' THE Grinder comes with their patented Quick-Fit Bit System,
 but will also accept standard grinding bits such as their Brilliant Bits.
Click here to see their Brilliant Bits.
Click here to see replacement Quick-Fit Bits.

Videos Setup and Care and Maintenance of THE Grinder

Disclaimer: This first video shows THE Grinder coming with both 3/4" and 1" Quick Fit Bits.
Techniglass currently only includes a 1" Quick Fit Bit with THE Grinder.
